Large-Format Glass and Sliding Walls: Opening Up Modern Villas

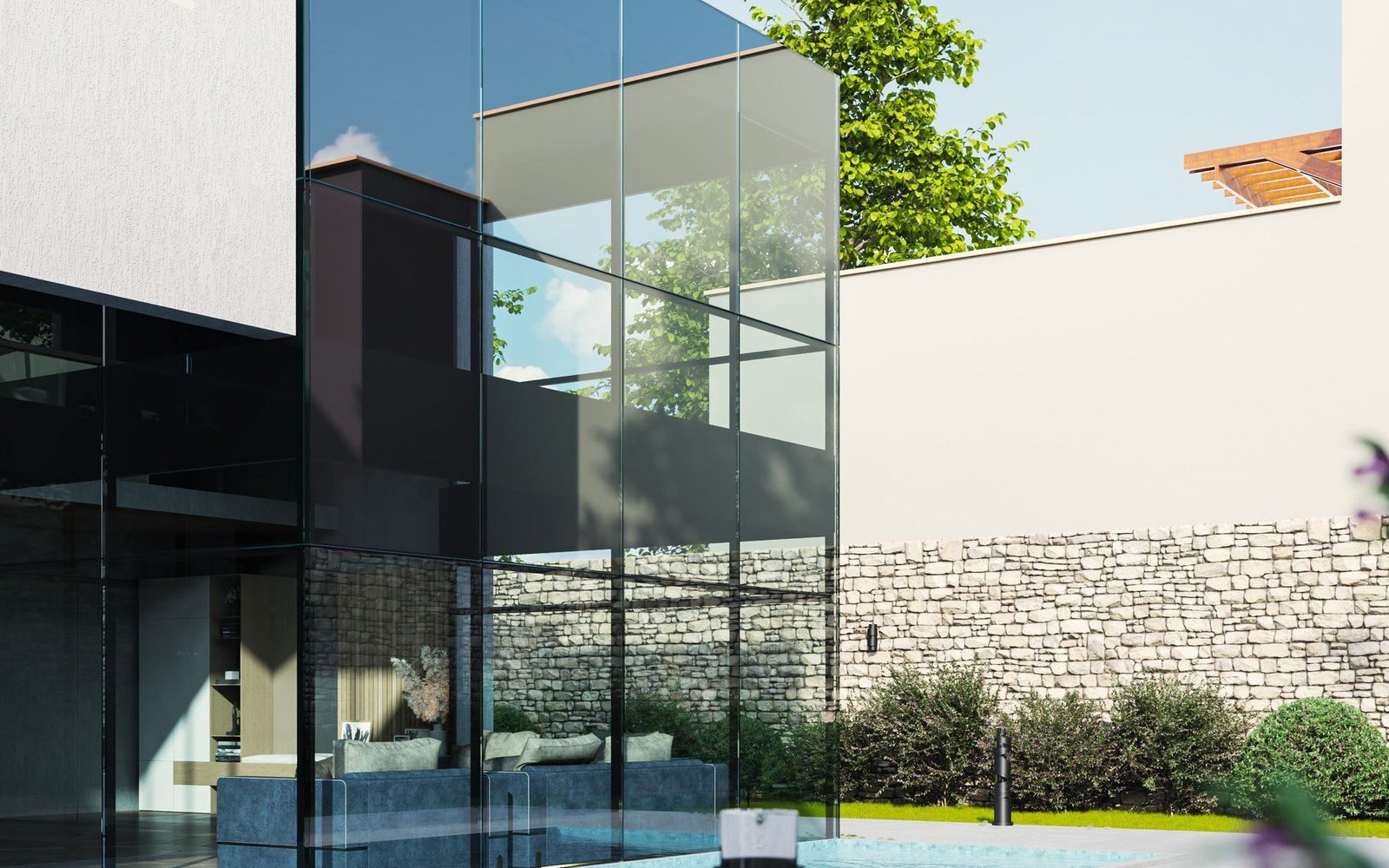

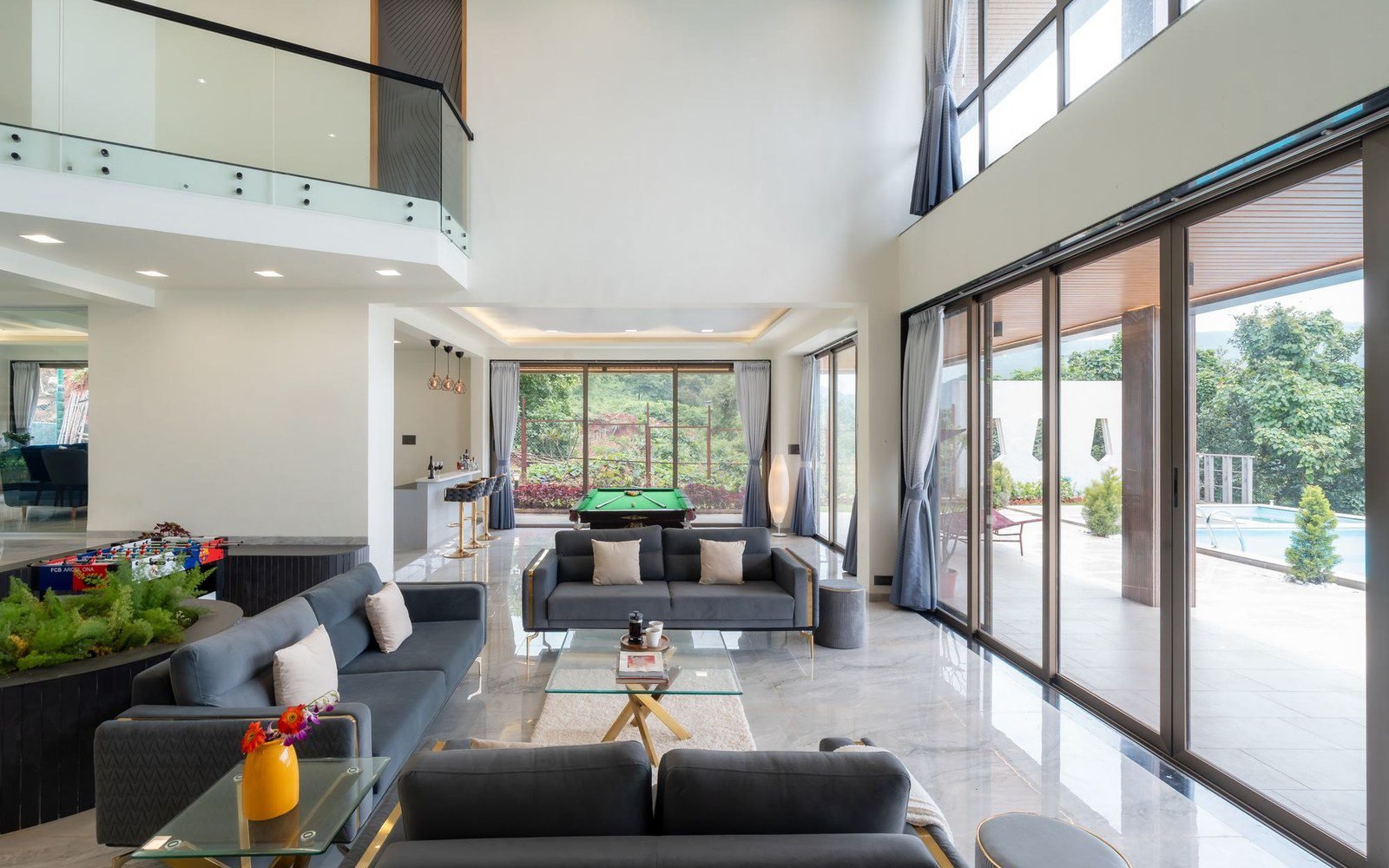

The most visible upgrade in contemporary villa design is no longer a material you can hold — it is an opening. A full-height glass wall that slides (or folds) away, the living room becoming the terrace, the terrace becoming the pool deck. Three numbers frame the 2026 version of this idea: architectural wall systems now ship single panels up to 90 square feet (about 8.4 m²) and 25 feet (7.6 m) tall; a 12 mm tempered panel weighs 30 kg per square metre — a 1.2 m × 2.4 m panel is an 86 kg object that no crew should lift by hand; and in Dubai’s destination market, a double-glazed folding panel is priced at AED 4,800–5,500 per panel for 2026. This article turns that trend into a specification you can actually send to a factory: what “large-format” means, which opening system fits your wall, what glass to specify, the thermal trap that inflates energy bills, and what the whole thing costs.

What “large-format” actually means in 2026

Five years ago, “large glass” in a villa meant a 1.5 m panel that still read as a door with a lot of glazing. Today the benchmark is set by architectural wall systems: a US premium manufacturer’s current wall product is documented at up to 90 sq ft of glass per panel, 25 ft tall, with mullion depths from 0.625 to 9 inches, an interior frame reveal under 1 inch, and glazing up to 2.5 inches thick — a wall where the structure almost disappears. The more important 2026 fact, though, is where the capacity comes from: China, which per People’s Daily’s 2026 industry report accounts for over 60% of global glass production and consumption. Luoyang-based NorthGlass, founded in 1995, documents the production end in dated project records: a West Kowloon tower used around 14,000 glass panels with a large proportion of 3 m × 3 m oversized tempered panels (largest single piece 5 m); Cartier’s Miami flagship took roughly 500 m² of multi-curved tempered glass with the largest panel at 7 m × 3 m; Tencent’s Shenzhen “Tengyun Center” used panels with a maximum arc length of 6.8 m and height of 3.1 m; and Brisbane’s Glasshouse Theatre — Project of the Year at the 2026 Glass Magazine Awards — received 217 custom curved insulating units, each about 7.5 m high. The same factory’s line forms and tempers a 3 m × 6 m 3D curved panel in about 10 minutes with tolerance under 2 mm. The practical meaning for a villa buyer: a 3 m × 3 m wall panel in 2026 is not an exotic custom piece, it is the standard oversized size of a supply chain that builds skylines.

Sliding, lift & slide, bifold: choosing the opening

The opening system decides how much of the wall you can actually remove, and the four live mechanisms in 2026 have distinct trade-offs. A sliding system runs two or more panels on a track, one or more fixed: it is the space-saving, minimalist choice, with fewer seams and fewer weak points for seals — a 2026 comparison from a Dubai glazing firm rates it ahead on energy performance and long-term weather resistance when correctly installed. Its structural limit is that only part of the opening ever becomes accessible; one panel must always stay in place. Bifold systems hinge panels together so they concertina and stack to one or both sides: they can open almost the entire wall, which is why they remain the go-to for villa gardens and pool terraces — at the cost of stack space, more moving parts, and a higher upfront price for the mechanism and hardware. For oversized single panels, lift & slide is the premium answer: the panel lifts off its seal when the handle turns, so very heavy glass moves with one person — a Dubai 2026 guide specifies it for openings beyond roughly 3 m × 2.5 m, where a standard slider’s track and rollers start fighting the glass weight. Panel count runs 2, 3, 4, 5 or 6+ for folding walls, and finishes span black or white powder coat, anodised, wood-grain and any custom RAL. The decision table the 2026 guides converge on: maximum opening → bifold; minimal frames and panoramic views → sliding; tight spaces → sliding; dramatic architectural feature → bifold.

The glass itself: thickness, safety and weight

Weight is the hidden spec in every villa glass wall, because it drives the hardware, the handling plan and the freight. Glass at standard density (2,500 kg/m³, the reference value in Australian Standard AS 1288) weighs 2.5 kg per square metre for every millimetre of thickness — the reference tables used by glazing contractors run 10 mm toughened at 25 kg/m², 12 mm at 30 kg/m², laminated builds from 6.38 mm at 15.2 kg/m² up to 12.38 mm at 30.2, and insulated units (IGU) at roughly 30 kg/m² for a 6/12/6 and 50 kg/m² for a 10/12/10. The Dubai 2026 guide’s specification logic matches the weight table: 10 mm tempered is the standard commercial specification; 12 mm tempered is the “larger panels, luxury villa” spec; laminated glass (tempered outer, laminated inner) is the highest safety build, mandatory thinking for overhead glazing and any villa with children near the pool wall. Note that toughening does not change mass — a 12 mm tempered panel weighs exactly what a 12 mm annealed one does — but it changes failure behaviour from shards to a granular crumble, which is the whole point. The handling tiers are the part most project plans skip: under 25 kg one person; 25–55 kg two people; 55–300 kg mechanical aid (vacuum lifter); over 300 kg a crane. Do the arithmetic for a typical villa panel: 1.2 m × 2.4 m in 12 mm tempered is 86.4 kg — solidly in the mechanical-aid band. Your installation plan should name the vacuum lifter before the glass is cut, not on the day it lands.

The thermal trap: specify Uw, not Ug

The single most common error in specifying glass walls is comparing the glass to other people’s glass. A 2026 standards guide from a Chinese door-and-window R&D team is explicit about the trap: marketing materials quote Ug (the centre-of-glass value, typically 0.6–1.1 W/m²K for a good double-glazed unit), while the number your energy model and your comfort actually live with is Uw — the whole-window value, typically 1.0–2.5 W/m²K, which folds in the frame, the edge seal and the spacers. A triple-glazed unit can show Ug = 0.7 while running Uw = 1.2. Convert carefully when comparing regions, too: W/m²K = the North American U-factor × 5.678. The second axis is solar, not insulation: clear glass passes SHGC 0.82–0.87 of the sun’s heat; standard low-E double glazing 0.25–0.50; dedicated solar-control glass 0.20–0.25. In hot climates the guide documents that the difference between SHGC 0.25 and 0.50 on a west-facing facade can cut cooling energy demand by 15–30% — often more than the step from double to triple glazing. The frame physics explains why aluminium walls need engineering: aluminium conducts roughly 1,000× better than UPVC and 8,000× better than still air, and a standard non-broken aluminium frame runs Uf ≈ 3.5–7.0 W/m²K — a thermal short across the whole wall. The fix is the thermal break: a 20 mm polyamide strip brings frame Uf to 2.0–2.8, 28–32 mm to 1.4–2.0, 40 mm+ to 0.9–1.4, and poured polyurethane to 0.6–1.0. For a Gulf villa, the Dubai material guide covers the wall around this one; the glass wall itself wants low SHGC 0.20–0.30 across all orientations, a 28–40 mm break, and Low-E with argon on the west and south elevations.

What a villa sliding wall costs in 2026

The destination-market anchor is the June 2026 Dubai guide, which prices per panel rather than per square metre: single-glass folding panels from AED 3,400; premium single-glass AED 4,000–4,800; double-glazed (DGU) panels AED 4,800–5,500, with the final price moving on panel dimensions, glass specification, hardware, profile system and site conditions. A worked example: a 4-panel DGU wall for a villa living room lands at roughly AED 19,200–22,000 (about US$5,200–6,000) at destination-market installed prices — before a canopy, before a screen, before the finish. Three levers dominate that number. First, the glass build-up: the step from 10 mm single to laminated/insulated double is the biggest per-panel jump, and it is the step worth paying for in hot and coastal climates. Second, the system: slim-frame premium profiles cost more than standard, and lift & slide adds the most for the heaviest panels. Third, the finish: black and white powder coat are the commodity options; wood-grain and custom RAL runs carry the premium. Two honesty notes for buyers sourcing from China. These are destination prices with local fabrication and installation baked in — factory FOB prices from a Chinese profile-and-glass supplier run materially below them, which is exactly the spread the interior pricing guide unpacks for whole packages. And panel-priced systems are quoted on standard panel sizes; a villa wall at 3.6 m × 2.7 m per panel is custom, and custom is where the quote stops being a list price.

From factory to villa wall: shipping the glass

A 12 mm tempered panel at 30 kg/m² is also a logistics object. A 2.4 m² panel is ~72 kg; a full 4-panel DGU wall is well over a tonne of glass, and the handling tiers above apply twice — at the factory and again at your site. That is why glass walls ship in engineered timber crates (each ISPM-15 treated and marked — a compliance item the sea freight timeline covers, where non-compliant wood packaging costs $300–500 in destination rework or gets rejected outright), why the numbered packing system that our Foshan factory runs for furniture extends to glazing packages, and why the pre-shipment inspection is where a hairline chip becomes a claim instead of a broken wall. The transit itself is the same timeline as any container: route sailing days plus the two ends — the shipping guide walks the commercial terms. The one glass-specific rule of the journey: panels travel vertically in crates, never flat-stacked across the panel face, and the crate itself is sized to the handling tier — a 300+ kg unit is a crane-lift at both ends of the trip, and your site plan should show the crane day before the container is booked.

The specification table for your project

The whole article compressed into the sheet to send with your drawing. Every row is a number a supplier can quote against — and a number that should appear in your contract’s technical appendix.

Frequently asked questions

What is the largest glass panel a villa wall can use?

Architectural wall systems in 2026 are documented up to 90 square feet (about 8.4 m²) per panel and 25 feet (7.6 m) tall, with frame reveals under an inch. On the manufacturing side, China’s oversized standard for landmark projects is the 3 m × 3 m tempered panel — around 14,000 of them went into one West Kowloon tower — and curved panels as large as 7 m × 3 m have been produced for luxury retail facades.

Is a sliding wall or bifold wall better for a villa?

It depends on the opening you want. Bifold systems can open almost the entire wall, which suits garden and pool terraces, but need stack space and carry more moving parts and a higher upfront price. Sliding systems open part of the wall (one panel always stays), but are more space-efficient, have fewer seams and seals, and are rated ahead on long-term weather performance. Beyond roughly 3 m × 2.5 m per leaf, lift & slide is the heavy-panel answer.

What glass thickness should I specify for a large sliding wall?

Ten millimetres tempered is the standard commercial specification; 12 mm tempered is the larger-panel and luxury-villa spec; insulated units (6/12/6, 10/12/10) add thermal and acoustic performance at roughly 30–50 kg/m²; and a laminated inner pane is the highest-safety build for pool walls and overhead glazing. Remember the weight: 2.5 kg per m² per millimetre — a 1.2 m × 2.4 m 12 mm panel is 86 kg and needs a vacuum lifter.

Do glass walls work in hot climates like Dubai or the Gulf?

Yes, with the right build-up. The 2026 Dubai specification recommends double-glazed units — 5+12+5 as the standard villa build, Low-E with argon fill for west and south elevations — because in hot climates the solar gain, not the insulation, is the enemy: the difference between SHGC 0.25 and 0.50 on a west-facing facade can cut cooling energy by 15–30%. Target SHGC 0.20–0.30 on all orientations and a 28–40 mm thermal break in the frame.

How much does a glass sliding wall cost in Dubai in 2026?

Destination-market 2026 pricing runs per panel: single-glass folding panels from AED 3,400, premium single-glass AED 4,000–4,800, and double-glazed panels AED 4,800–5,500. A 4-panel DGU villa wall is therefore roughly AED 19,200–22,000 (about US$5,200–6,000) at those destination prices, with the final quote moving on panel size, glass spec, hardware and site conditions. Factory FOB pricing from China sits materially below destination installed prices.

How are large glass panels shipped from China safely?

Vertically, in ISPM-15 treated timber crates, with the handling plan set by weight tiers: under 25 kg one person, 25–55 kg two people, 55–300 kg a mechanical vacuum lifter, over 300 kg a crane at both factory and site. The crate must be fumigation-compliant (a failed ISPM-15 mark costs $300–500 in rework or rejection at the destination), and the panels are checked at pre-shipment inspection before the container seals.

Send us the wall dimension, the orientation and your climate, and we will return a full glass specification — panel size, build-up, Uw and SHGC targets, system type and the handling plan — priced for your project.
