Outdoor, Garden & Pool Lighting for Villas
Outdoor and pool lighting is the set a villa uses every night, in rain, salt and UV. We produce it to the rating the site demands — IP65 for the terrace, IP66 for the wall, IP67 underwater — and build the whole kit, supply, driver and cable, in one labeled crate.
The Set That Works Every Night, in Rain and Salt
Bodies are 316 stainless or die-cast aluminium with a tempered glass front. Every unit is pressure-tested to its rating, then lit on the bench before it goes into the export crate.
Technical Specifications
The standard specification behind every lighting kit we produce. Every value can be changed per project — send your lighting schedule and we confirm the final spec before production.
Full specification
- Ingress rating
- IP65 terrace, IP66 wall, IP67 underwater
- Body materials
- 316 stainless, die-cast aluminium, tempered glass
- Voltage
- 12 V or 24 V DC, isolated supply
- Wattage
- 3 W – 50 W per unit
- Color temperature
- 2700 K – 4000 K, or RGB for the pool
- Dimming
- 0 – 10 V, or RF controller for RGB
- Cable
- UV-stable, glanded entry, rated for the IP
- Supply
- Outdoor-rated, isolated, dry-location mounted
Materials on the Outdoor Line
The body is 316 stainless where salt is in the air, or die-cast aluminium with a marine powder-coat for the dry terrace. The front is tempered glass; the seal is silicone, not rubber — rubber fails on pool lights after a season. Every seam is gasketed and then pressure-tested.
The supply is the part we insist on: an isolated, outdoor-rated driver mounted dry, with the cable to the wet run grafted through a sealed gland. The whole kit — body, supply, cable, gland, controller — ships in one crate labeled by run.
Outdoor Sets from Recent Villas

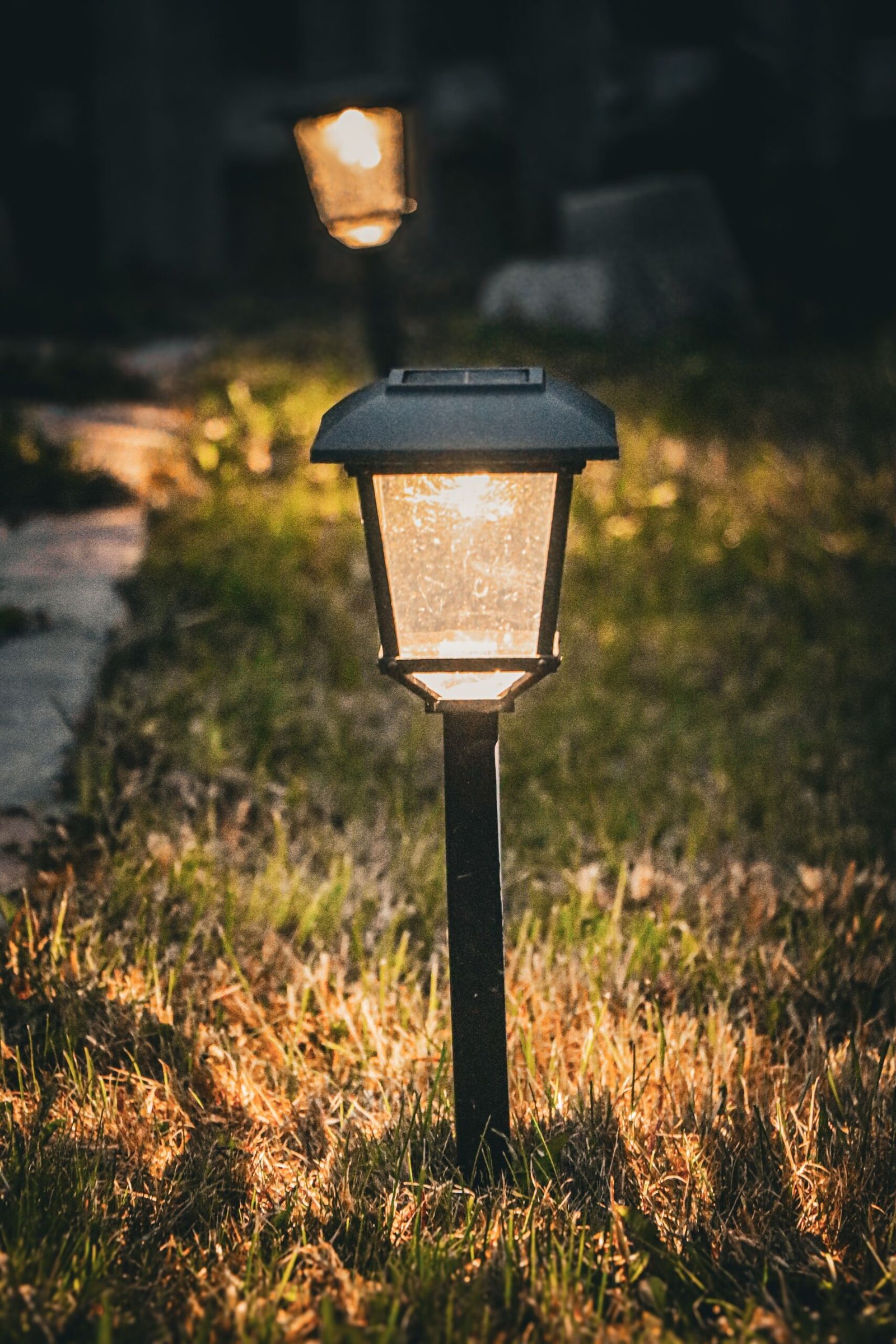

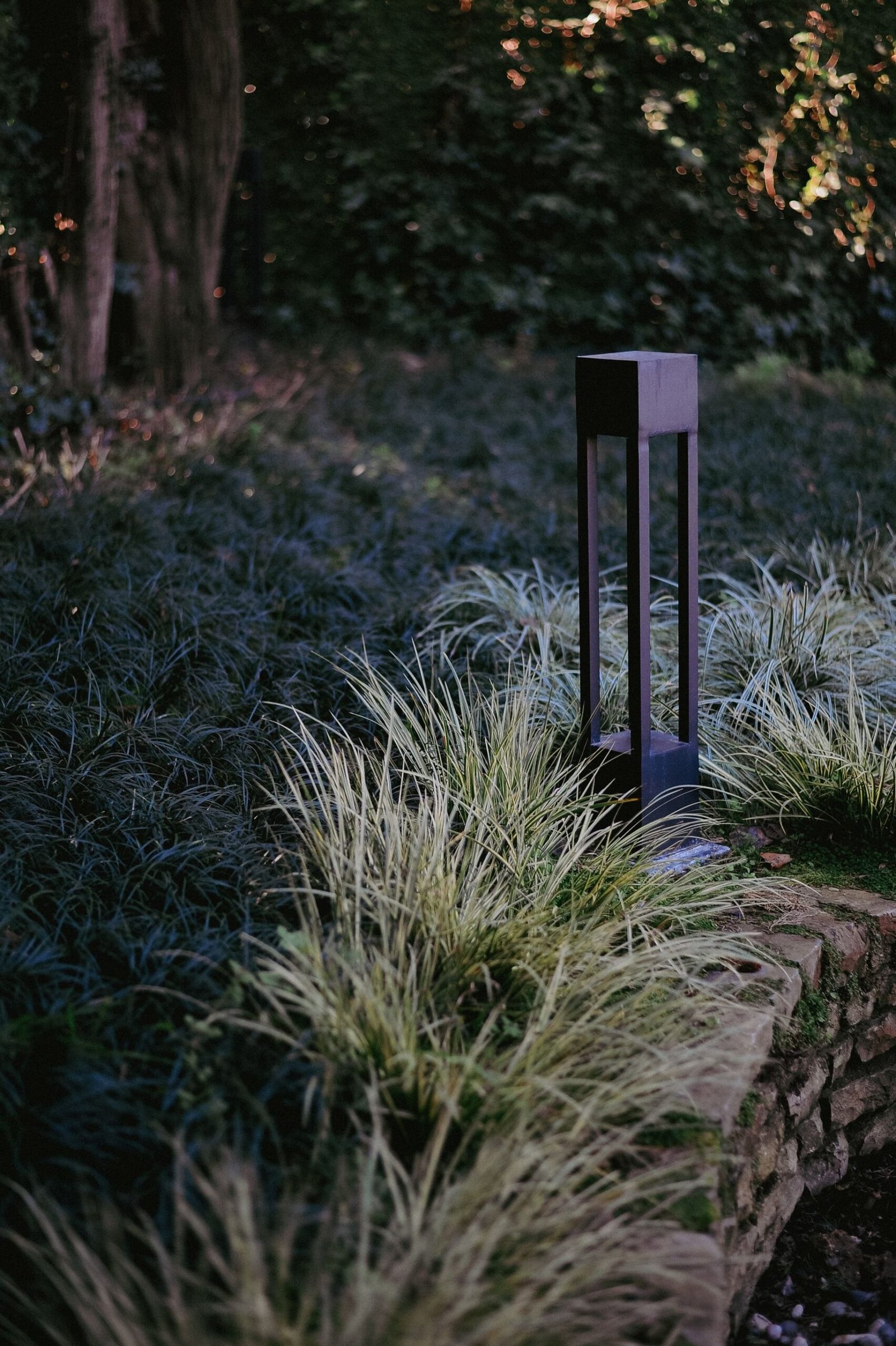

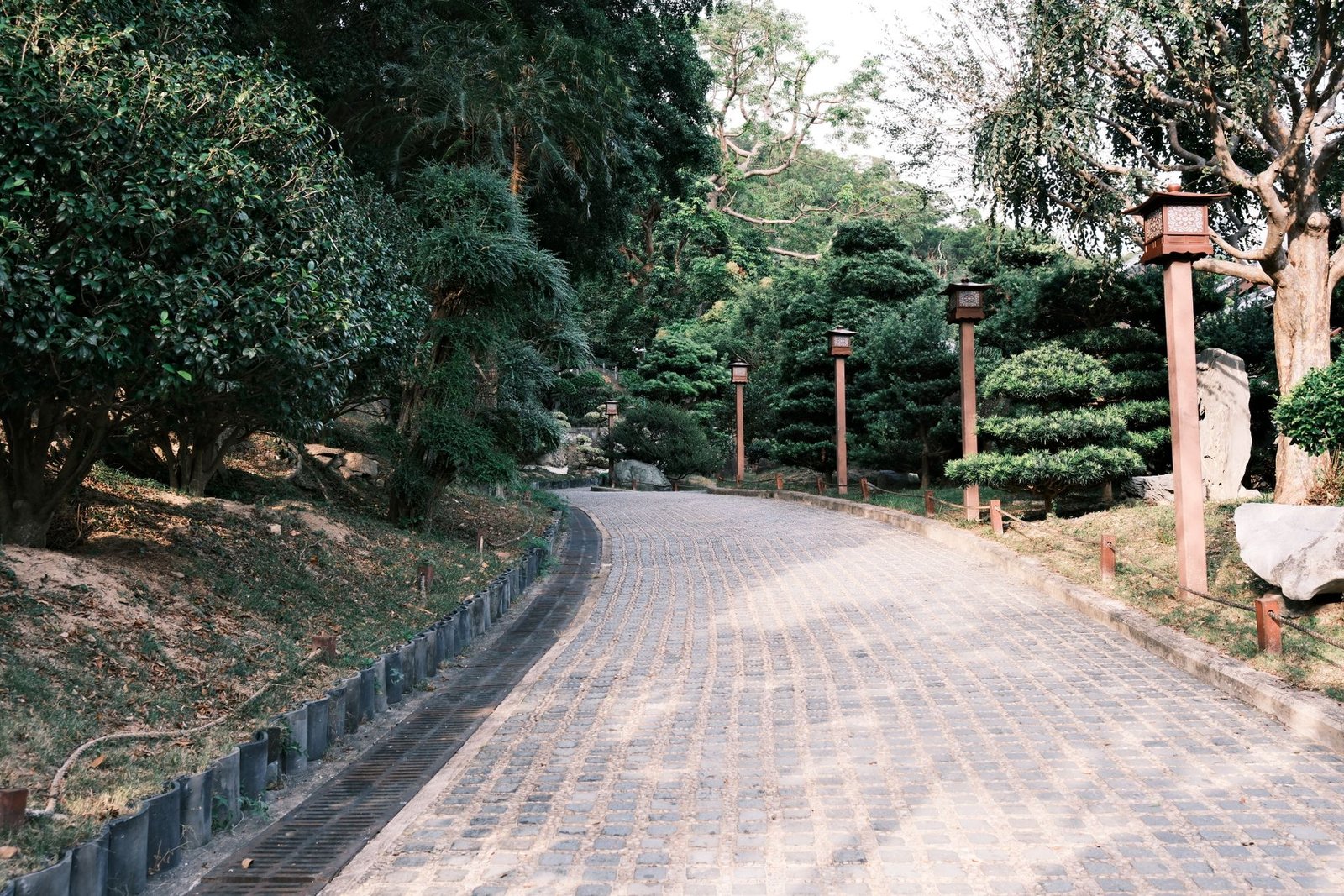

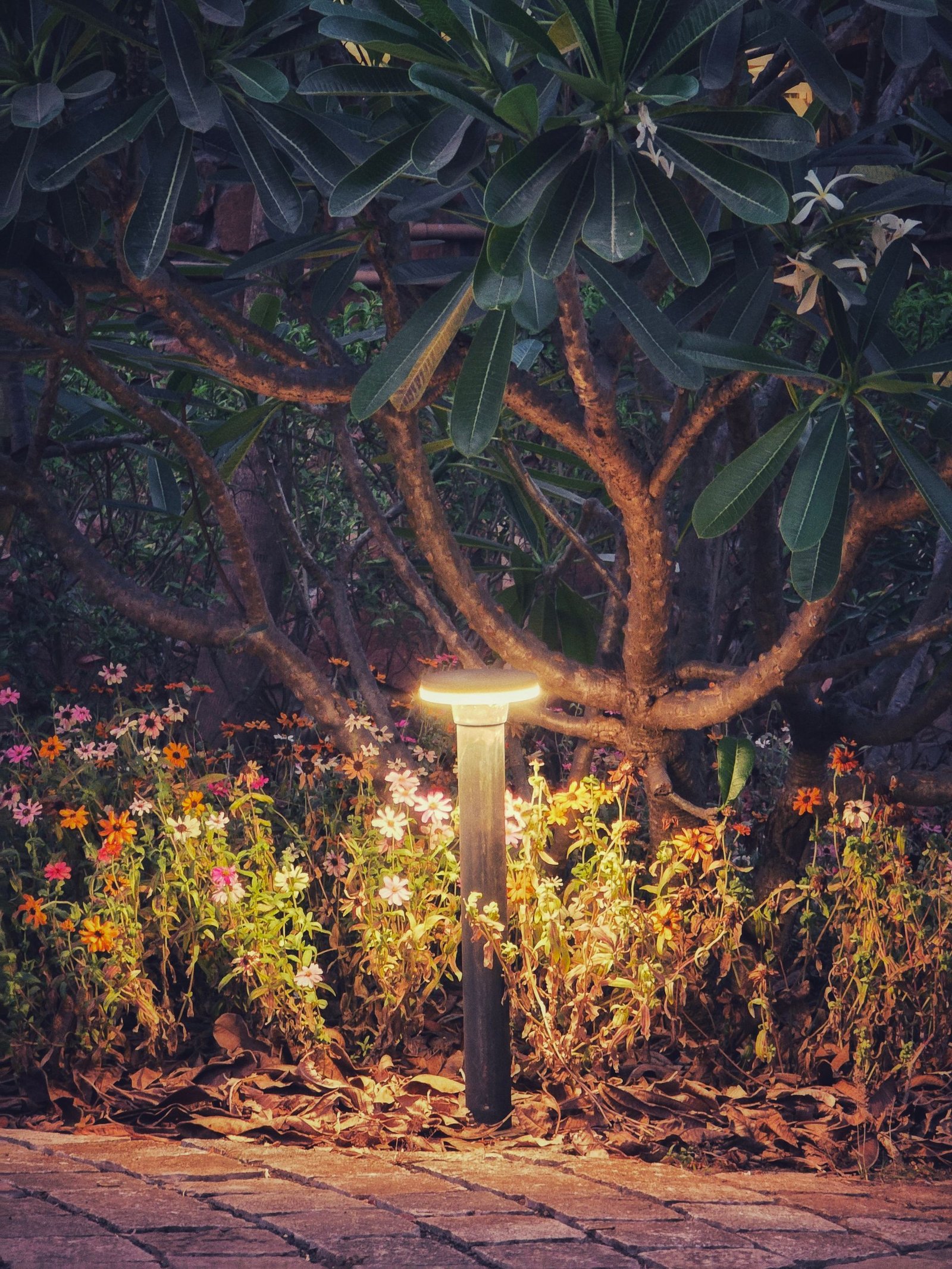

Three examples from the line — the terrace wall set, the garden path, and the pool underwater run.
How Each Outdoor Set Is Built
The eight points we specify on the drawing, in the order they leave the workshop.
IP rating selection
IP65 for the covered terrace, IP66 for the open wall, IP67 for anything underwater. The rating is chosen per unit on the drawing and printed on the carton so the site can check it.
Underwater construction
The pool unit is 316 stainless with a tempered glass front and a silicone seal, grafted to a dry isolated supply through a sealed gland. It is pressure-tested to the rating before packing.
Body material
316 stainless where salt is in the air, die-cast aluminium with a marine powder-coat for the dry terrace. The finish is rated for UV, not just for the showroom.
Supply and isolation
An outdoor-rated, isolated driver mounted dry, with the cable to the wet run through a sealed gland. The supply is sized to the run with headroom and marked on the crate label.
Dimming and control
0-10V for the dimmable set, an RF controller where the pool runs RGB. The controller and the remote are bagged with the run they belong to.
Layout and scenes
The set is drawn as runs — wall, path, pool — each with its units, CCT and dimming. The villa lights in scenes, not in a row of identical fixtures.
Weather and UV
Every body is rated for the sun, the rain and, where the site is coastal, the salt. The cable is UV-stable and the gland is the rated type for the IP.
Packing and export
Units boxed by run, supplies and controllers in a separate carton, cable cut and grafted to length with the gland in. The crate label lists every run by name, rating and unit count.
Terrace, Wall or Pool — Which Rating Where
The three outdoor uses on the line, side by side, the way we mark them on a villa drawing.
| Terrace / Path | Open Wall | Pool Underwater | |
|---|---|---|---|
| Rating | IP65 | IP66 | IP67 |
| Body | Die-cast aluminium | 316 stainless | 316 stainless, glass front |
| Supply | Outdoor, dry mount | Outdoor, dry mount | Isolated, dry, glanded |
| Best zone | Covered terrace, path | Open facade, garden | Pool, water feature |
How Ordering Works
The same four-step process we use for every villa lighting package — from the first drawing to your loading port:
Step 1: Send the site plan
Which walls, paths and the pool take lighting, the conditions — covered or open, coastal or inland — and the CCT you want. A site plan with the runs marked is enough to start.
Step 2: Receive drawing and quote
Within 24 hours we return the outdoor schedule — runs, rating, body, supply, dimming per zone — with the price per unit and per villa.
Step 3: Approve the sample
One run is built, pressure-tested and photographed for approval before the full set starts. Sample lead time: 7 – 10 days.
Step 4: Production and export
The full set is produced, tested to rating, then packed by run and crated. Standard lead time is 15 – 30 days from approval to loading port.
Ordering & Delivery Specs
Factory-direct from Foshan, China — the same published numbers on every product page, for easy comparison.
| Order / MOQ | No rigid minimum — orders start from a single room; whole-house consolidation available |
|---|---|
| Factory price | Factory-direct pricing, up to ~30% below retail; interior design fee $5–12/㎡ by area (tiers on the pricing page) |
| Production lead time | 45–50 days standard, varies with project scale and material selection |
| Shipping | FOB / CIF / DDP door-to-door · FCL container consolidation · room-by-room labeling & export packing |
| Origin | Foshan, Guangdong, China — 20 years of export experience |
| Certifications | ISO 9001 · ISO 14001 · CE · SGS · SASO · Intertek |
| Warranty | 2–5 years depending on category |
| Pre-shipment QC | Quality inspection report + container loading photos with every shipment |
Frequently Asked Questions
Is IP65 enough for a pool terrace?
For a covered terrace, yes. For an open wall or anything the rain hits directly, we spec IP66. For the pool itself, only IP67 in a sealed body on an isolated supply — that is the rating the water demands.
Will the pool light handle salt water?
The underwater body is 316 stainless with a tempered glass front and a silicone seal, on an isolated 24 V supply. 316 is the grade that holds in salt air and water; 304 is what we do not use on a pool.
Do I need a separate electrician for the pool supply?
The kit comes with the isolated supply and the sealed gland, drawn for the run. Your site electrician installs it as one set — the drawing and the English label are in the crate.
What is the minimum order?
One run per design, but we quote the villa outdoor set — wall, path and pool in one crate. Sets are produced in one batch so the CCT and the finish match around the building.
Can the outdoor lights run scenes with the indoor set?
Yes, where the villa has one control system. The 0-10V and RF drivers pair with the indoor dimmers and the common villa controllers, so the whole villa lights in one scene.
What happens after I send my site plan?
An engineer draws the outdoor schedule to your runs and replies within 24 hours with the schedule, spec sheet and quote. Nothing is produced until you approve the schedule and, if you choose, a sample run.
Send Your Site Plan for Outdoor Lighting
The runs, the conditions and the CCT you want — that is all we need to draw the schedule and return the quote.
Send Your Lighting ScheduleView How It WorksLighting Overview
Maintained by the George Villa design team — ISO 9001-certified villa interior factory, Foshan, China. Updated September 2026. See how it was delivered — 347 delivered villa projects — or how your order ships door to door.
